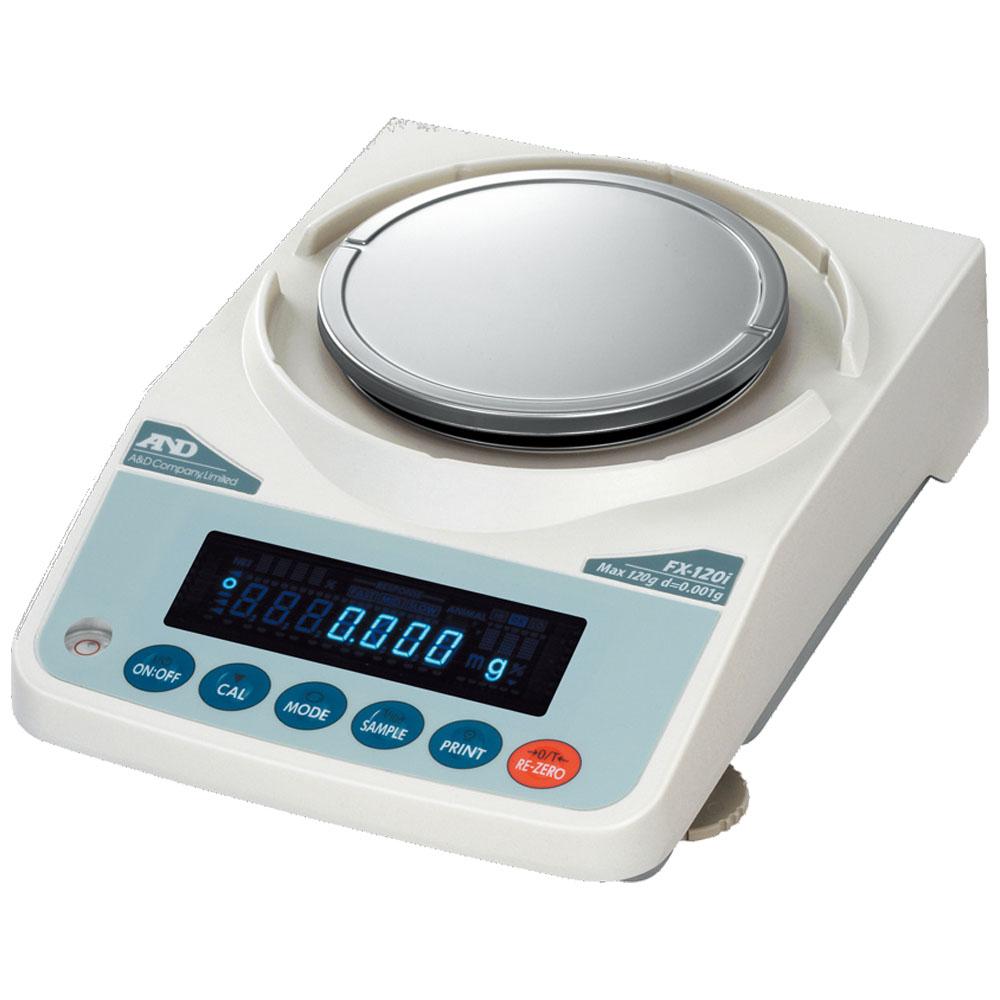

A&D FX-120i Precision Balance - Pre-Programmed for SuperTrickler
The A&D FX-120i is a laboratory-grade precision scale specially pre-programmed for use with the SuperTrickler powder dispenser. This balance combines exceptional accuracy with lightning-fast response time, making it the ideal choice for reloaders who refuse to compromise on precision.
This scale is delivered ready-to-use with all necessary settings for direct integration with the SuperTrickler. You don't need to perform any programming yourself, saving time and preventing installation issues.
Compact Super Hybrid Sensor Technology
At the heart of the FX-120i lies the patented Compact Super Hybrid Sensor (C-SHS). This technology uses magnetic force restoration instead of cheaper load cell sensors. The result is a scale that doesn't drift, requires no warming-up time, and remains stable under all conditions.
The stabilization time is only one second. This means you get an accurate reading immediately after placing the powder pan, without waiting. When reloading large batches of cartridges for precision shooting, this delivers significant time savings.
Resolution of 0.02 Grain
The FX-120i weighs with a resolution of 0.001 gram, equivalent to 0.02 grain. This accuracy is essential for developing loads for long-range shooting. In ELR disciplines or F-Class competitions, a difference of 0.1 grain can already be noticeable in vertical dispersion at distance.
The large vacuum fluorescent display provides crystal-clear readings, even in difficult lighting conditions. You can switch between multiple weighing units, including gram, grain, ounce, and various other systems.
Built-in Protection Mechanisms
A specially designed shock absorption system protects the internal sensors against vertical and transverse overloading. This is crucial in daily use, where accidents can happen. The scale can take a hit without affecting accuracy.
The stainless steel weighing platform has a diameter of 130 mm, ample space for standard powder pans. The platform is easy to clean, which is important when switching between different powder types.
Pre-Programmed for SuperTrickler

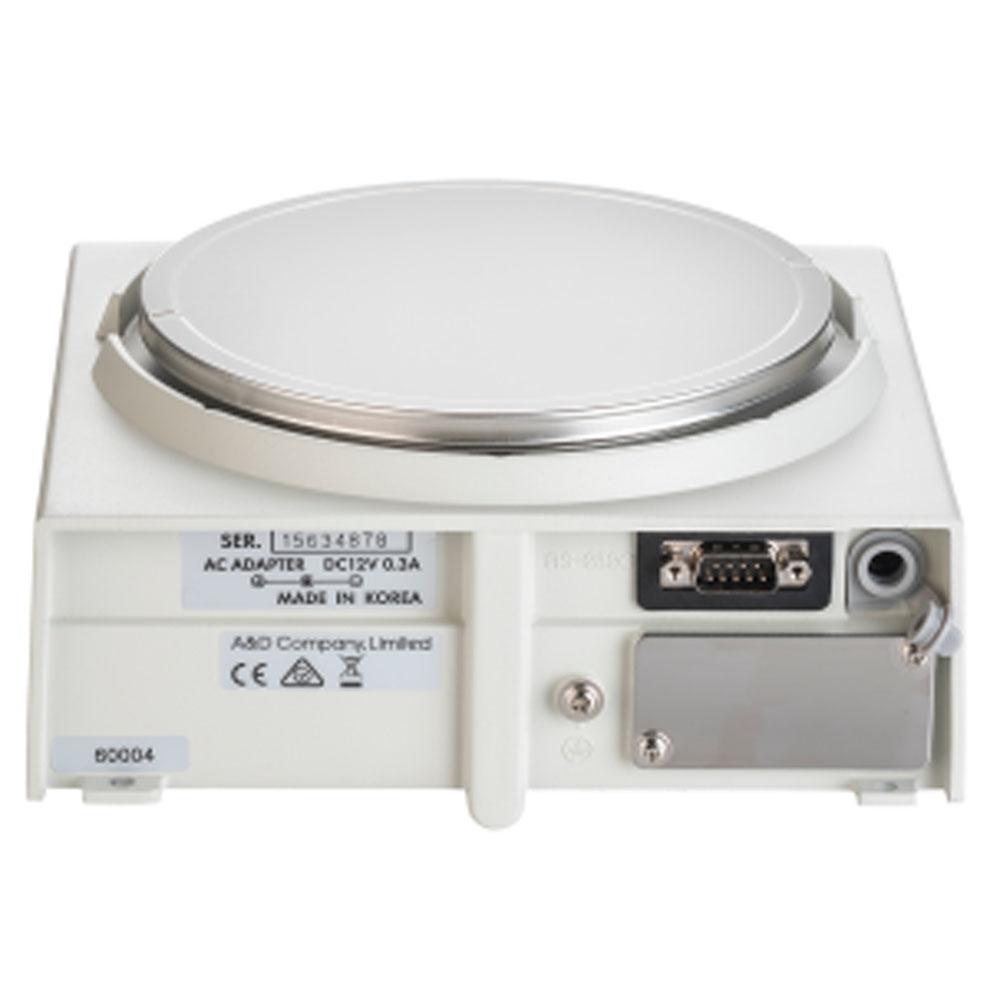

This FX-120i is specially pre-programmed for direct connection with the SuperTrickler dispenser. The RS232 communication is correctly configured, allowing the system to function immediately upon first use. The scale is powered via the cable to the SuperTrickler, so you don't need a separate power adapter.
Please note: No service or support is provided for programming scales. This balance is already correctly configured, but if you wish to make adjustments to the programming, you are responsible for this yourself.
Statistics and Data Processing
The Statistical Calculation Function (SCF) offers statistical display of weighed samples. This is useful when analyzing consistency in powder charges or when sorting bullets by weight. Data can be sent via RS232 to a computer for further analysis.
The underhook function allows weighing objects beneath the scale. This is convenient for specific applications where the object doesn't fit on the weighing platform.
Practical Applications for Precision Reloading
For reloaders working on loads for 1000-yard competitions or longer distances, this scale is indispensable. The combination with the SuperTrickler delivers a system that is three times faster than manual methods, with better consistency.
When developing loads for precision rifles such as .308 Win, 6.5 Creedmoor, or .338 Lapua Magnum, every 0.02 grain matters. The FX-120i gives you the certainty that your charges are exact, translating to better groups at distance.
Delivery and Contents

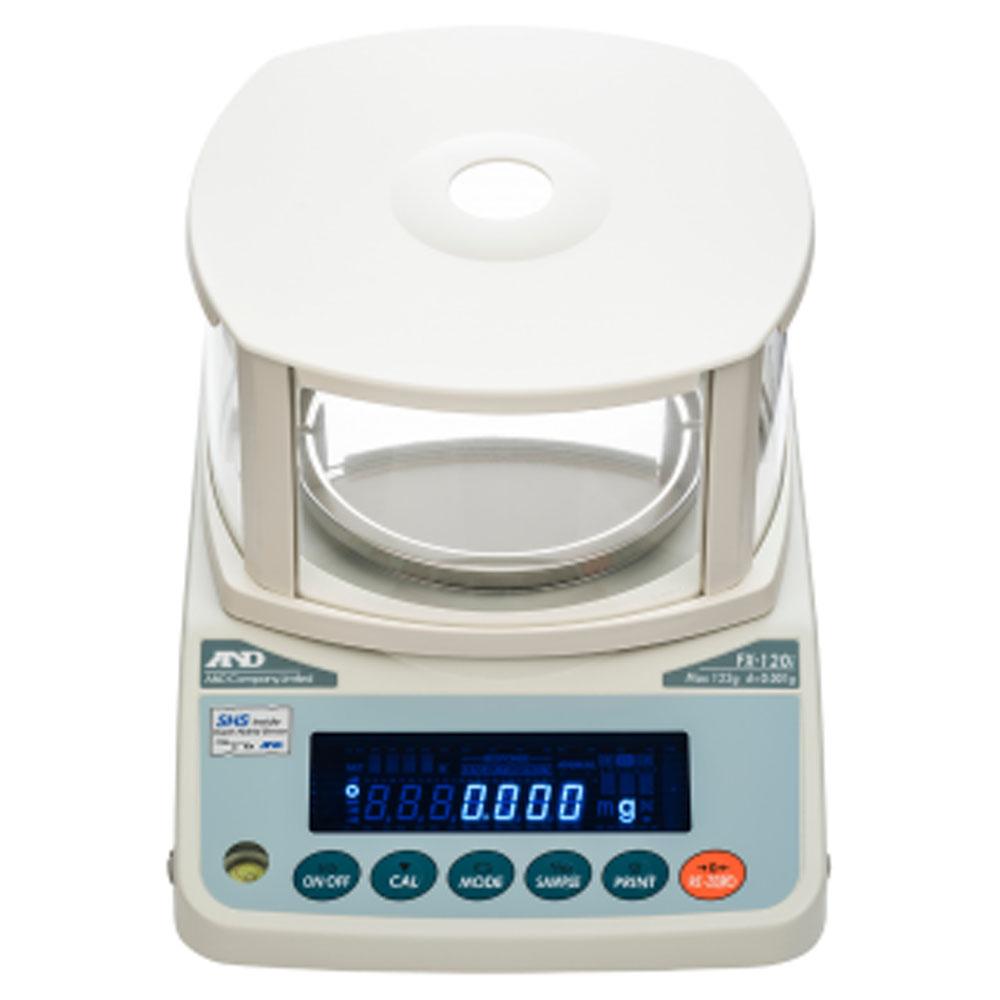

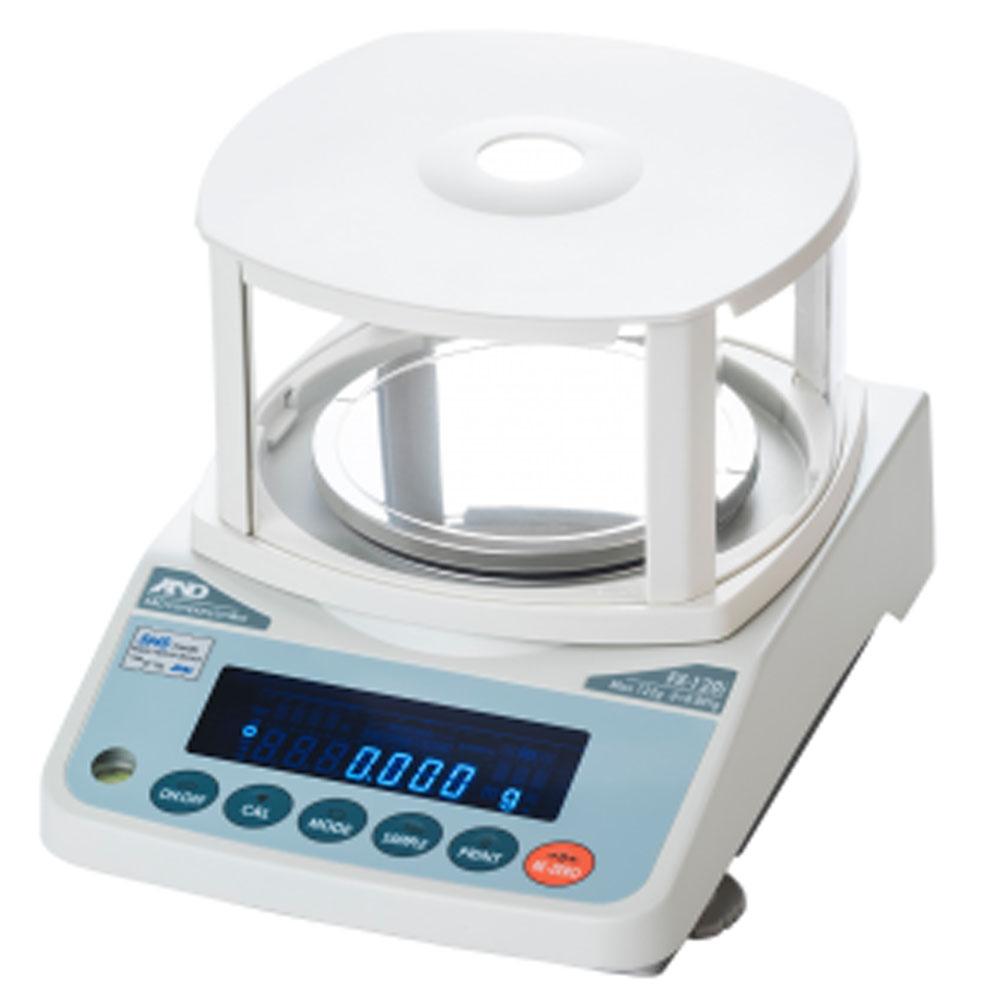

This product contains the A&D FX-120i scale pre-programmed for SuperTrickler, a 100-gram precision calibration weight, and cotton gloves. A breeze break with a height of 85 mm is included as standard.
The scale meets GLP/GMP/GCP/ISO requirements and comes with a five-year manufacturer's warranty. This underscores A&D's confidence in the durability and reliability of their products.
Technical Specifications
- Weighing range: 122 grams (1880 grain)
- Resolution: 0.001 gram (0.02 grain)
- Response time: 1 second
- Weighing platform: Ø 130 mm, stainless steel
- Sensor: Compact Super Hybrid Sensor (magnetic force restoration)
- Display: Vacuum fluorescent, clearly readable
- Interface: RS232 (pre-programmed for SuperTrickler)
- Power: Via SuperTrickler cable
- Dimensions: 198 mm × 294 mm (smaller than A4)
- Weighing units: gram, grain, oz, lb, ozt, ct, mom, dwt, and more
- Warranty: 5-year manufacturer's warranty
- Standards: GLP/GMP/GCP/ISO compliant
