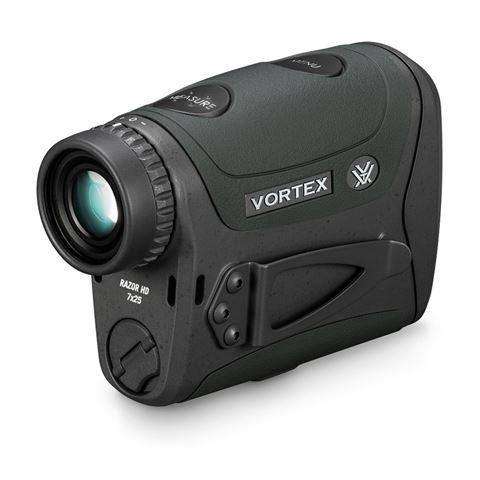

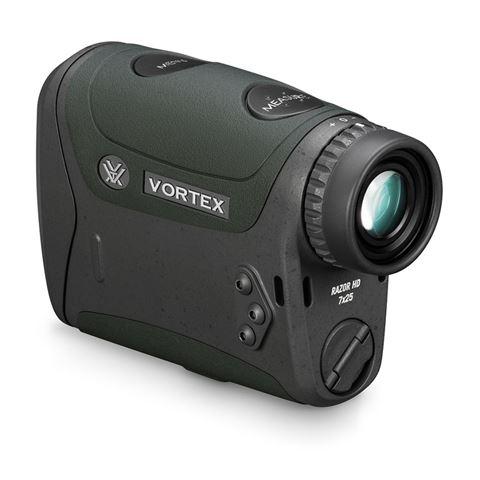

Vortex Razor HD 4000 GB Ballistic Laser Rangefinder
The Vortex Razor HD 4000 GB Ballistic Laser Rangefinder. One device that displays all the distance and ballistic data you need to make the shot of a lifetime, every time. Perfect for westbound shooters and long-range hunters. The fully equipped Razor HD 4000GB increases the speed at which you can aim at the target. At the touch of a button, you have the right information, allowing you to fire the first shot with confidence.
Robust and extremely reliable, the Razor HD 4000GB is. In any environment. It can measure the exact distance of objects located at a distance of up to a whopping 3658 metres (4000 yards).
The Razor HD 4000GB delivers all the range, ballistic and environmental data you need for absolute accuracy where and when it is needed.
Key features
IN-DISPLAY WIND/DROP SOLUTIONS
Equipped with the accurate GeoBallistics® ballistic resolver supported by a complete up-to-date bullet database.
CUSTOMISE BALLISTIC PROFILES
Customise ballistic profiles via the GeoBallistics® App or use one of three pre-loaded profiles for popular patterns.
TWO WIND MODES
Full crosswind mode and the patented Wind Bearing Capture Mode.
PAIRS WITH THIRD-PARTY DEVICES
Pairs with Kestrel® weather measuring devices.
Download thee
GeoBallistics® app:
Application Vortex Razor HD 4000 GB
The Razor HD 4000 GB is the essential companion for the extreme hunter, archer and shooter. This highly effective angle-compensated laser rangefinder has four aiming modes (normal mode, front mode, rear mode and extended laser range mode) for any environment.
The HCD (Horizontal Component Distance) mode is intended to be the main mode. The distance shown is the distance of the horizontal component.
HCD mode
The Horizontal Component Distance (HCD) mode is your primary mode when using the on-board ballistic resolver. The displayed distance number is the critical horizontal component distance. The displayed HCD distance is corrected for the shooting angle and does not require additional user input; shooters simply use the correct bullet trap for the displayed range and shoot. Shooters use the correct ground sight pin for the displayed range.
Note: To account for the wind, you need to know the sight line distance to the target, as it is based on how far the arrow or bullet reaches the target. This can be achieved using BAL mode.
BAL mode:
In ballistic mode (BAL), an additional number appears above the range number. This number is the range angle in degrees and is automatically calculated in the wind/drop solution in the display and in the GeoBallistics® App. If you do not use the on-board solver, enter the range angle number in ballistics programmes or field maps to get the precise bullet drop in mountainous terrain. To use the Razor® HD 4000 GB on-board ballistic solver, you must be in BAL mode.
Lens features:
HD Optical System, optimised with selected glass elements for exceptional resolution and excellent colour fidelity, edge-to-edge sharpness and light transmission.
XR™ Plus Lens Coatings, ultimate anti-reflective coatings on all air-glass surfaces ensure maximum light transmission for maximum clarity and the ultimate in low-light performance.
Armor Tek®, ultra-hard, scratch-resistant coating protects outer lenses from scratches, oil and dirt.
Construction Features:
Rugged Design, designed to withstand extreme conditions. Compact and lightweight.
Rubber Armor, the rubber armour provides a secure non-slip grip and durable protection.
Diopter adjusts for differences in the user's eyes. Located on the right eyepiece.
Waterproof O-ring seals prevent moisture, dust and dirt from entering for reliable performance in all environments.
Magnesium chassis reduces weight and increases strength.
1/4" Tripod connection, allowing use on a tripod.
Attachment option for a lanyard so it can be hung around the neck. A clip is also attached to the side of the Razor HD 4000, so it can be easily slipped around a belt.
Other features:
In-Display Wind/Drop solutions, equipped with the accurate GeoBallistics® ballistic solver supported by a complete up-to-date bullet database.
Customisable ballistic profiles, customise ballistic profiles via the GeoBallistics® App or use one of three pre-installed profiles for popular patterns.
Onboard environmental sensors Compass, humidity, barometric pressure and temperature sensors for quick acclimatisation.
Two wind modes with full crosswind mode and patented Wind Bearing Capture mode.
Works with third-party devices, cooperates with Kestrel® weather gauges.
Easy-to-use Menu, very user-friendly menus with a simple backlit display.
AWC™, through All Weather Capable the rangefinder can be used in all weather conditions.
Automatic power-off after 30, 45,60 or 180 seconds if the rangefinder is not used.
Low battery icon, appears when 25% capacity remains.
Distance display, displayed in yards or metres.
Moving
targets
Stationary
targets
Stationary
targets
on tripod
Normaal
1463 metres
1646 metres
2195 metres
Normaal ( Scan )
1829 metres
2012 metres
2195 metres
ELR
2012 metres
2286 metres
3658 metres
Unlimited Lifetime VIP Warranty
VIP stands for a Very Important Promise for you, our customer. We repair your Vortex® product in case it fails. If we cannot repair your product, we will replace it with a product that is in perfect condition and in the same or better physical condition.
The VIP warranty does not cover loss, theft, intentional damage or cosmetic damage that does not affect the performance of the product.
