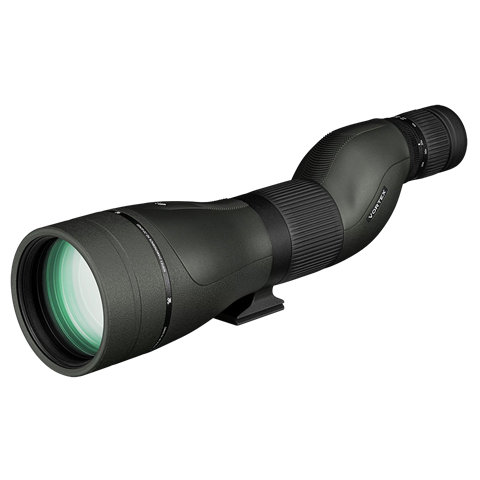

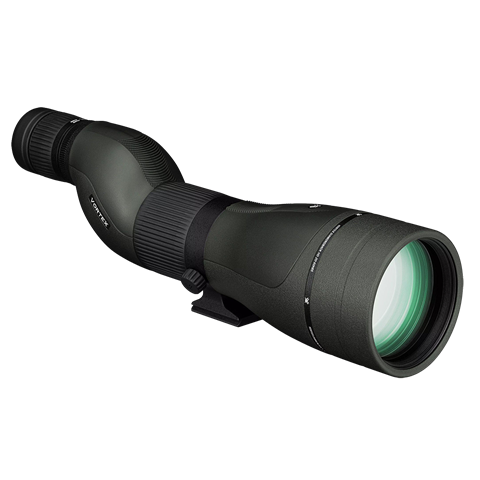

Vortex Diamondback HD 20-60x85 Spotting Scope Straight: Reliable Optics for Precision Shooters
The Vortex Diamondback HD 20-60x85 Spotting Scope in straight configuration combines HD glass optics with robust construction at a price point that appeals to every shooter. This spotting scope delivers clear images, even during twilight and at maximum magnification, which is essential for precision work at the range and target identification at long distances.
Optical Performance for Demanding Shooters
The 85mm objective gathers sufficient light to distinguish details where smaller scopes fall short. The combination of high-density (HD) glass with extra-low dispersion (ED) elements minimizes color fringing and increases sharpness throughout the entire zoom range from 20x to 60x magnification. The fully multi-coated lenses maximize light transmission, while the dielectric coating on the prisms ensures a high-contrast image with true-to-life colors.
At 20x magnification, this scope offers a field of view of 32.9 meters at 1000 meters, ideal for quickly locating targets. At 60x magnification, the field of view narrows to 18.3 meters, perfect for detailed observation of bullet impacts and analyzing wind indicators at great distances. The exit pupil ranges from 4.25mm at low magnification to 1.41mm at maximum zoom, ensuring comfortable viewing in various light conditions.
Construction for Intensive Use

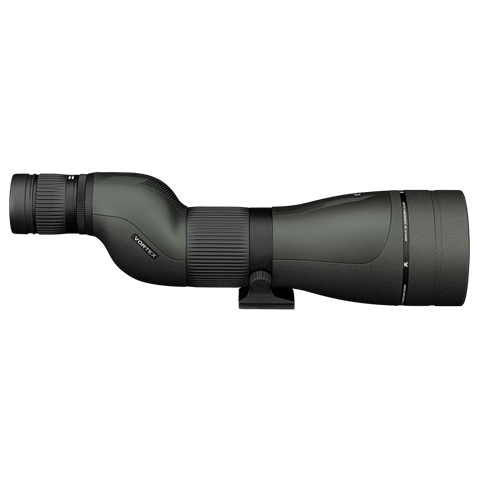

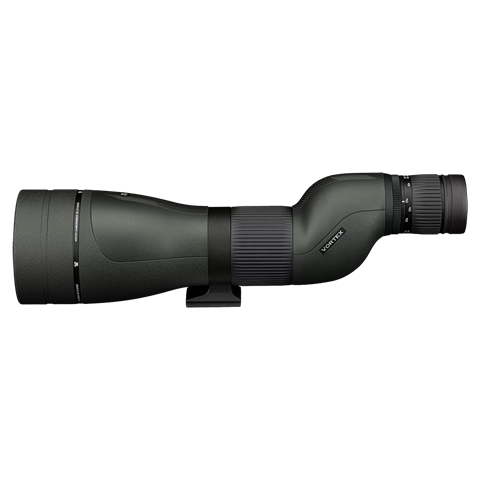

The straight configuration offers specific advantages for shooters. In prone or kneeling shooting positions, the straight design provides a natural line of sight without requiring adjustments to your body position. This makes the scope particularly suitable for precision shooters working from the ground who want to remain discreet.
The helical focus ring around the housing is within easy reach and focuses with subtle precision. The integrated sunshade extends smoothly and protects against incoming light that causes contrast loss, while simultaneously keeping rain and snow off the objective. The ArmorTek coating on the outer lenses resists scratches and dirt, extending the optic's lifespan.
Reliability Under Changing Conditions
Argon gas fills the internal space and prevents condensation when transitioning from warm to cold environments. The O-ring seals make the scope waterproof and dustproof. This spotting scope weighs 1726 grams and measures 40.64 cm in length, providing a good balance between stability and portability.
The rotating tripod collar offers 45-degree positioning for optimal viewing comfort, regardless of your tripod height. The 1/4"-20 thread accepts standard tripod heads, and the ARCA-compatible design allows direct mounting on ARCA-style clamp plates without additional adapters.
Practical Use at the Range
For assessing hits at long distances, this scope offers sufficient magnification and resolution. The minimum focus distance of 7.5 meters also enables use at shorter ranges. The twilight factor of 41.2 at 20x to 71.4 at 60x supports observation during early morning and late afternoon sessions when light diminishes.
The neoprene protective case with removable parts protects the scope during transport and storage. The included lens caps for eyepiece and objective remain connected to the scope through tethers, preventing loss during field use.
Specifications for the Technical Shooter
- Magnification: 20-60x variable
- Objective diameter: 85mm
- Exit pupil: 4.25-1.41mm
- Field of view 1000m: 32.9m (20x) to 18.3m (60x)
- Light intensity: 18.1 (20x) to 2.0 (60x)
- BAK-4 prism glass with dielectric coating
- Argon gas filling, waterproof and fogproof
- Length: 40.64cm, weight: 1726g
- VIP lifetime warranty from Vortex
The Diamondback HD 20-60x85 Spotting Scope delivers professional optical performance at a price that remains accessible. The straight design suits shooters who prefer functional form over compromises, and the HD optics guarantee you see what's happening, even when distance and light conditions become challenging.
