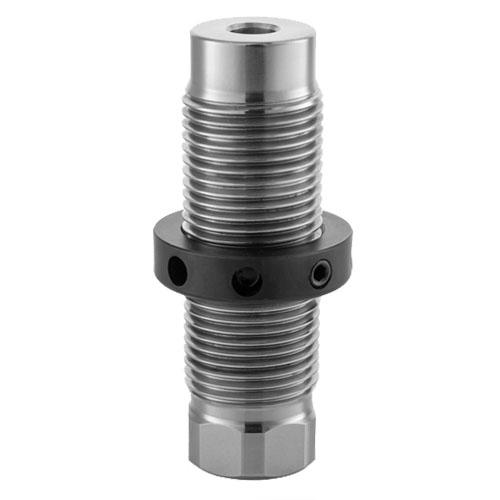

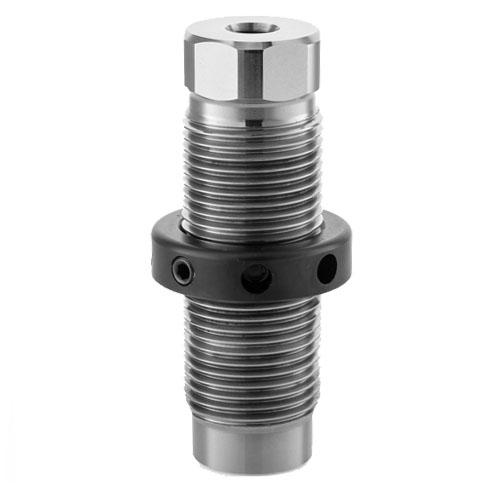

Cortina Precision Die Blank .30 Cal
The Cortina Precision Die Blank is the starting point for reloaders and gunsmiths who want to create custom reloading dies for specific chamber specifications or wildcat cartridges. Unlike standard reloading dies that are pre-configured for specific calibers, this unfinished die blank provides a base for complete custom adaptation. This specific blank is pre-bored to .304", making it suitable for .30 caliber projects such as .308 Winchester, .300 Winchester Magnum, .30-06 Springfield, and related cartridges.
Technical Specifications and Machining Options
The die blank is CNC-machined from high-quality stainless steel, specifically selected for its ability to withstand the high pressure and repetitive use associated with ammunition reloading. The exterior surface is smooth and precision-machined, making further modifications straightforward. The thread is standard 7/8"-14 UNF, compatible with all conventional reloading presses.
The drilling process requires careful planning. The drill diameter must be larger than the bullet diameter but smaller than the neck diameter of your sizing reamer. This blank is pre-bored to .304", which is ideal for .30 caliber projects with a standard bullet diameter of .308". The .304" bore provides sufficient clearance for the bullet while still giving you optimal control when machining to your specific cartridge dimensions. When machining the blank, first indicate the die in the lathe, drill and pre-bore the chamber if necessary, and then drill completely through the die with a drill large enough to allow the reamer to pass through without resistance.
Who is This Die Blank Suitable For
This tool is primarily intended for advanced reloaders and gunsmiths with access to a lathe and the necessary precision tooling. Customizing a die requires accurate measurements, calculations, and precision adjustments to ensure the die functions accurately and safely. The process involves machining the internal dimensions, including neck diameter, shoulder angle, and body taper, precisely tailored to your specific firearm.
Applications in Shooting Sports
Custom reloading dies are popular among competition shooters striving for optimal ammunition for their specific firearm. Whether you're working on F-Class loads in .308 Winchester, developing Palma ammunition, or creating precision ammunition for long-range shooting in .300 Winchester Magnum, a custom sizing die can make the difference between good and excellent consistency. By tailoring the die exactly to your chambered barrel, you minimize case working and maximize case life, while simultaneously achieving optimal neck tension and minimal runout.
Wildcat Cartridges and Experimental Loads
For wildcat enthusiasts, a die blank is often the only option, as manufacturers don't make standard dies for experimental or rare cartridges. Think of cartridges like .30 BR, .300 Norma Magnum Improved, or other custom .30 caliber wildcats. With a die blank and the right reamer, you can create fully functional sizing dies that perfectly match your wildcat project. This opens possibilities for cartridge development and experimentation that would otherwise be unattainable.
Cortina Precision Quality
Cortina Precision, founded by renowned F-Class shooter Erik Cortina, is known for high-quality precision tools. The die blanks follow the same quality standards as their acclaimed EC Tuners and other reloading accessories. The stainless steel material ensures a long lifespan without corrosion, even with intensive use.
