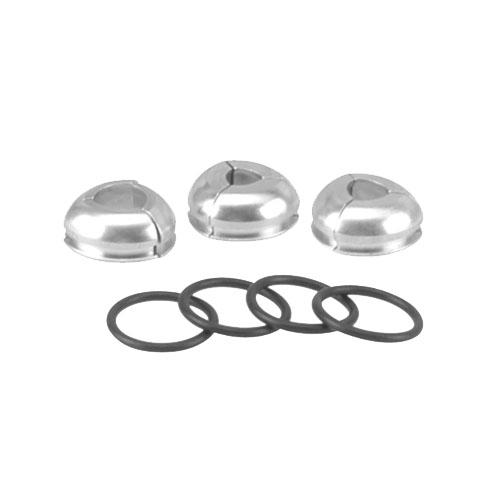

Aluminum collet set for impact bullet pullers
An inertia bullet puller (impact bullet puller) works by striking the cartridge against a hard surface. The bullet separates from the case under its own momentum. The collet is the component that clamps the case inside the puller. Without a properly fitting collet, the case cannot be held firmly enough and the bullet will not release.
This set contains three aluminum collets that each cover a different range of calibers. Together they span virtually the entire spectrum from .17 Remington to .45-70 Government, including both rifle and handgun cartridges, rimless and rimmed alike.
Which collet for which caliber?
Collet #1 (1 groove)
• .17 Remington, .218 Bee, .22 Hornet, .222 Remington, .223 Remington
• .25 Auto, .30 Carbine, .32 Auto, .32-20 Winchester
• .380 Auto, 9mm Luger, .38 Super, .40 S&W, 10mm
Collet #2 (2 grooves)
• .22 Jet, .38 Special, .357 Magnum, .357 Maximum
• .25-35 Winchester, .250 Savage, .257 Roberts
• .25-06 Rem., .270 Win., .280 Rem., .30-06, .243 Win.
• 7mm-08 Rem., .308 Win., .358 Win., .45 ACP, .30-30 Win., 7.62x39
Collet #3 (no grooves)
• .264 Win. Mag., 7mm Rem. Mag., .300 Win. Mag., .338 Win. Mag.
• .375 H&H, .458 Win. Mag., all Weatherby Mag. calibers (except .378, .416, .460)
• .33 Winchester, .348 Winchester, .444 Marlin, .45-70 Govt.
Wide compatibility
Although these collets are designed for the Frankford Arsenal Quick-N-EZ impact bullet puller, they also fit similar inertia-type bullet pullers from other manufacturers. The collets are machined from aluminum and secured with a rubber O-ring that rolls over the top and seats into the groove.
Specifications
• Brand: Frankford Arsenal
• Product: aluminum collet set
• Material: aluminum with rubber O-rings
• Quantity: 3 collets (size #1, #2, and #3)
• Compatible with: Frankford Arsenal Quick-N-EZ impact bullet puller
• Caliber range: .17 Remington to .45-70 Government
• Part number: 737910
Practical tips
Collets wear over time, especially if you pull bullets regularly. The aluminum collets can develop impressions from the case rim, reducing grip. Inspect your collets periodically and replace the set once you notice cases slipping. Always use the bullet puller on a block of hardwood, never on steel or concrete, as this extends the service life of both the collets and the puller itself.
This collet set is a useful spare for any reloader who works with an inertia bullet puller. Combine the set with the Frankford Arsenal Pile Driver bullet puller or the Quick-N-EZ for a complete bullet pulling system.
