Case Prep Tool Set Complete P3 - Burstfire
The P3 is the most complete case prep set Burstfire makes. Everything from the P2, plus the Primer Pocket Go & No-Go Gauge Set. Verify your pockets are correctly sized right after reaming, no guessing.
Everything from the P2, plus go/no-go gauges

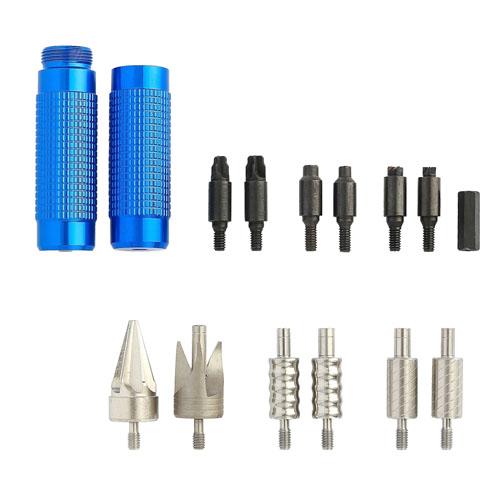

VLD chamfer, outside deburr, reamers for large and small, cleaners in both sizes, uniformer set, handle, carry case and hex adapter. All included, same as the P2. The difference is the gauge set.
Primer Pocket Go & No-Go Gauge
The small primer Go-Gauge is machined to 0.1725". Standard small primers measure between 0.1745" and 0.1755", most sitting at 0.175". A 0.175" primer fits a 0.1725" pocket on a press. Hand priming at 0.1755" may give some resistance.
The gauges have an enlarged body with a wave-shaped profile for a solid grip. They also thread onto any 8/32 handle.
The No-Go Gauge measures 0.005" over maximum pocket dimensions. If it slides in fully without resistance, the pocket is too loose. Time to recondition or recycle.
Primer pocket reamers built to SAAMI specs
80-85° cutting angle instead of the usual 35-40°. Less material removed, cleaner pockets. Cut radius: 0.1730" small, 0.209" large.
Compatible with the Burstfire 2-in-1 Annealer
8/32 threading on every tool. Fits the Burstfire 2-in-1 Annealer & Case Prep Center, the handle, or a power drill via the hex adapter. Up to five times faster than working by hand.
Specifications
- Threading: 8/32 (industry standard)
- Primer pocket reamer cutting angle: 80-85°
- Reamer small primer pocket: 0.1730"
- Reamer large primer pocket: 0.209"
- Go-Gauge small primer pocket: 0.1725"
- No-Go Gauge: 0.005" over maximum pocket dimensions
- Includes: VLD chamfer, outside deburr, 2x reamer, 2x cleaner, uniformer set (large & small), go/no-go gauge set (large & small), handle, carry case, hex adapter
- Compatible with all 8/32 case prep centers and handles
- SKU: Burstfire-CPT-P3-Blue
Who is this set for?
If you want full control over your case prep, the P3 is the one. You'll know exactly when a pocket is right and when a case needs to be retired. Especially valuable with premium brass like Lapua or Peterson.
Pair it with the Professional Flashhole Uniformer from K&M for fully prepped flash holes, or the Frankford Platinum case prep station for bigger batches. Questions? Get in touch.
